ab 122,24 €

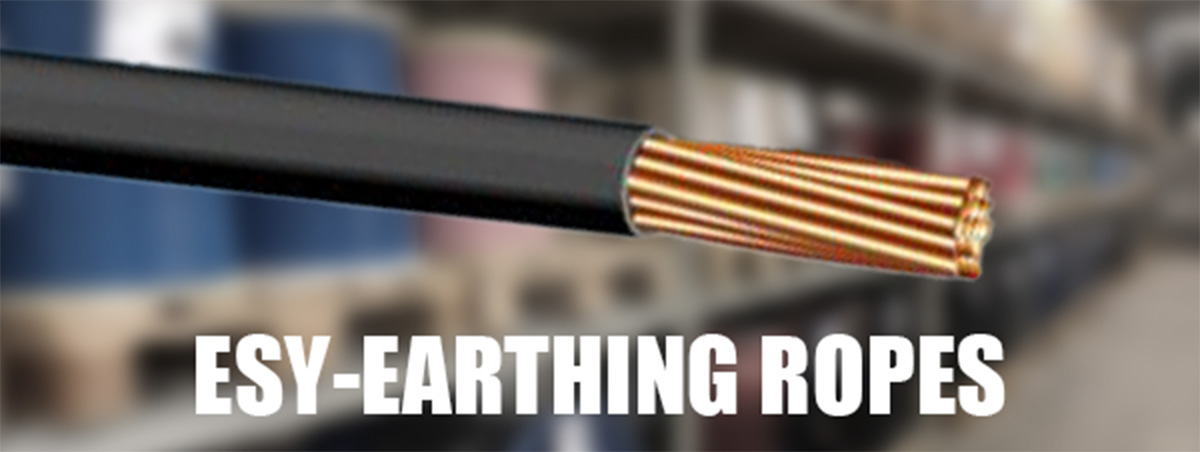

For many decades LEONI ESY-Earthing ropes earthing ropes have stood for outstanding quality. High-quality products are especially important
in safety-related applications.
Earthing ropes are used above all to temporarily earth or
short-circuit current-carrying components in the high voltage
plant of power companies during repair, cleaning or maintenance
work, as well as while carrying out maintenance work
on power rails and lines of railways and trams.
Another area of application involves earthing installations and
potential equalisation for machinery and IT equipment.
Our earthing ropes are subject to ongoing optimisation
and testing to the present IEC 61138 standard for cables
used with non-stationary earthing and short-circuiting equipment.
Electrical properties:
Resistance
Max. resistance at a basic temperature of 20 °C, an end-of-rope temperature 250 °C
and a resistance duration of max. 0.5 s in machines operating on alternating and
three-phase current
Electric strength
Min. 10 kV/mm
Chemical resistance
Resistant to diluted acids and bases solutions
Thermal properties
Operating temperature
Permitted continuous operating temperature on conductor max. 70 °C
Low temperature resistance
In passive state –40 °C
On installation/in operation –25 °C
